DigiTrak™ F5 Transmitters


Your Price From $3,400.00
Part #: DF5TC
This item is in stock
This item is over 150lb and must be shipped with Freight.
Get this as early as tomorrow if ordered before 3pm PST. More Shipping Info

Transmitter reliability is an essential element of success for HDD contractors. Transmitter failures result in lost productivity and missed deadlines. DCI designed the first transmitter to send roll and pitch to a receiver and hasn't stopped innovating since.

Product Features

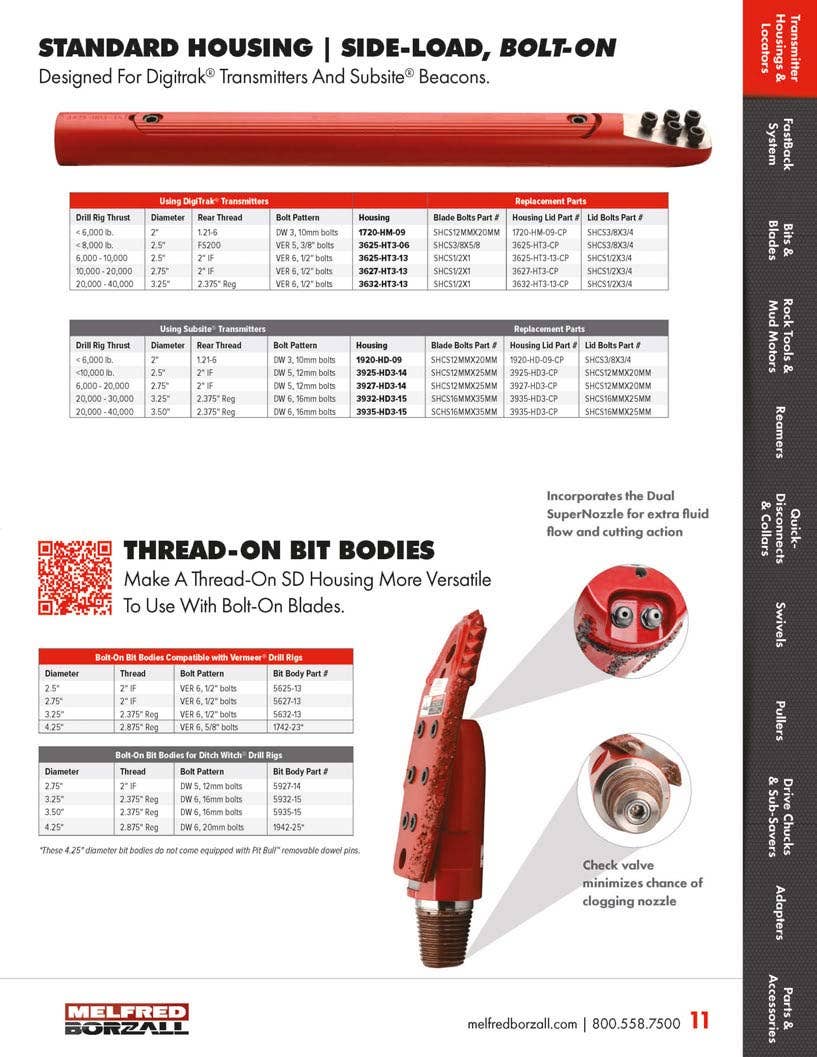

Housing Requirements

  • DCI transmitters fit standard housings but may require a battery cap adapter in some cases.
  • DCI’s transmitters require three slots equally spaced around the circumference of the drill head for optimal signal emission and maximum battery life
  • The Fluid Pressure Transmitter is compatible with most drill housings that let fluid flow from the annulus around the housing to the four sensor ports on the front end cap; slots in the housing will satisfy this requirement. Housings with epoxied slots require a 1/8 in. diameter hole to allow fluid to reach the transmitter's sensor ports.

Specialty Transmitters

  • XRange® Mode (x) – XR significantly extends roll/pitch data range, in some cases more than twice as far
  • Fluid Pressure Transmitter (p) – Measures annular fluid pressure outside the drill head
  • TensiTrak® System – Monitors both annular fluid pressure and the tension on the product during pullback
  • SST® Steering Tool – Delivers accurate steering data without a costly wire grid




F5X 18

F5X 8

F5D 12/1.3

F5Dp 12/1.3

F5D 19/12

F5Dpx 19/12

F5DLpx 19/12

  Frequency

18.5 kHz

8.4 kHz

12 & 1.3 kHz

12 & 1.3 kHz

19.2 or 12.0 kHz

19.2 or 12.0 kHz

19.2 or 12.0 kHz

  Data Range

65 ft.

65 ft.

65 ft.

65 ft.

65 ft.

65 ft.

100 ft.

  XR/XR Max

  Data Range

 N/A  N/A N/A N/A N/A

105/120 ft.

170/200 ft.

  Pressure

N/A N/A N/A

0–250 psi

N/A

0–250 psi

0–250 psi

  Length

15 in.

15 in.

15 in.

15 in.

15 in.

15 in.

19 in.

  Diameter

1.25 in.

1.25 in.

1.25 in.

1.25 in.

1.25 in.

1.25 in.

1.25 in.
