Shredder Reamers

Short Answer: A barrel stabilizer is not always required, but it is helpful on longer bores, larger diameter holes, or in unstable ground conditions.

Correct use: A reamer can be run without a barrel stabilizer on shorter bores where ground conditions are stable and hole integrity can be maintained. As bore length or diameter increases, adding a barrel stabilizer helps keep the reamer centered and the hole round without collapsing.

Technical details: A barrel stabilizer supports the reamer body during rotation and pullback, reducing the chance of wandering, over-enlargement, or uneven cutting. This becomes more important in softer or reactive soils where the bore is more likely to deform.

Incorrect use includes: Running larger-diameter or longer bores in unstable ground without stabilization can be risky for hole collapse or irregularity, uneven reaming, and increased pullback loads. Always consult manufacturer recommendations for additives and operation.

Short Answer: Pre-reaming is not always required, but stepping up in stages can be beneficial when bore length, final diameter, or ground instability increases.

Correct use: A single-pass ream can be appropriate on shorter bores with manageable diameter increases and stable ground. When moving to larger final diameters, running longer distances, or working in ground that is prone to swelling or collapse, staged reaming helps control the bore and manage the cut.

Technical details: Stepping up in stages reduces stress on the bore, improves cuttings transport, and can reduce spikes in torque and pullback load by avoiding a large diameter jump in one pass. This approach also helps maintain a rounder, more consistent hole in variable or reactive formations.

Incorrect use includes: Attempting a large diameter increase in a single pass on long bores or in unstable ground. This can introduce greater risk of poor hole quality, excessive pullback loads, stuck tooling, and bore collapse.

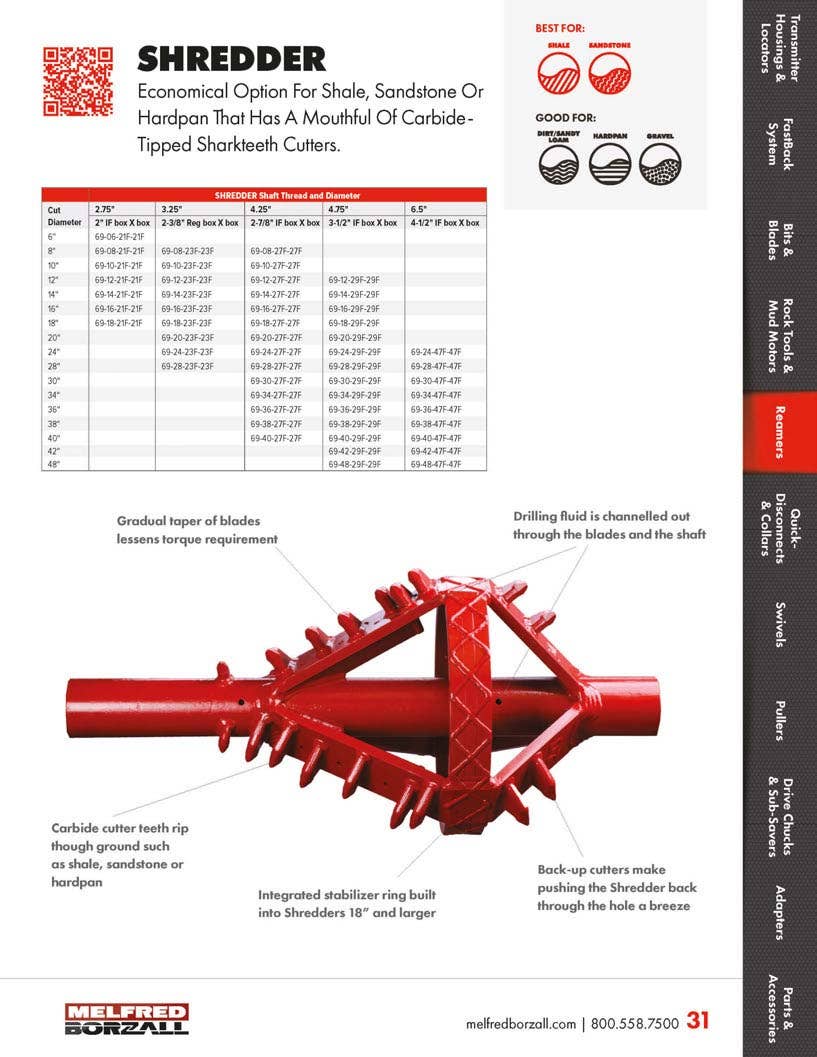

Short Answer: The Shredder Reamer is used for aggressive bore enlargement in tough, compact, and abrasive ground conditions.

Correct use: The Shredder Reamer is designed for HDD applications where cutting power is needed to break through hardpan, shale, sandstone, gravel, and mixed formations. It is an economical option when conditions are too demanding for lighter reamers but do not justify specialty rock tooling.

Technical details: Shredder Reamers feature a high density of carbide-tipped “shark teeth” cutters that rip through tough ground, combined with a gradual blade taper that helps manage torque. Drilling fluid is channeled through the blades and shaft to carry cuttings efficiently.

Incorrect use includes: Running the Shredder in very soft or flowing soils where aggressive cutting is unnecessary. Incorrect use can introduce greater risk of inefficient hole conditioning or excessive disturbance.

Short Answer: The Shredder Reamer is compatible with HDD rigs and drill strings that match its shaft diameter, thread type, and torque capacity.

Correct use: Match the Shredder Reamer to the rig's torque output and drill rod connection, ensuring the selected reamer size and shaft configuration are appropriate for the machine and bore.

Technical details: Shredder Reamers are available in multiple shaft diameters and thread options to cover a wide range of HDD rigs. Integrated stabilizer rings and internal support structures on larger sizes help maintain alignment and durability under load.

Incorrect use includes: Mismatched threads or insufficient rig capacity. Incorrect use can introduce greater risk of connection damage or poor reaming performance.

Short Answer: Shredder Reamers are best suited for caliche, hardpan, shale, sandstone, gravel, and tough mixed ground.

Correct use: Use the Shredder when the formation requires aggressive cutting and durability to break up compacted or abrasive material. It performs well where standard reamers slow down or stall.

Technical details: A dense cutter layout with carbide-tipped teeth maximizes cutting action, while backup cutters and gradual blade taper help reduce torque spikes and make pushbacks easier. Larger Shredders include an integrated stabilizer ring for added support.

Incorrect use includes: Running the Shredder in flowing sand or loose soils where pumping-style reamers are more appropriate. Incorrect use can introduce greater risk of poor hole stability or unnecessary wear.
