Keep your bore centralized on multiple pass reams while packing and stabilizing the hole. Borzall Barrel stabilizers features internal baffles to reduce weight from drilling fluid and bi-directional for push or pull use. This drilling reamers barrel stabilizer also minimizes hole collapse by using replaceable forward-facing nozzles to provide fluid without jetting out hole walls. Learn more and buy a Borzall barrel stabilizer, today!
- The key component of a successful large diameter project
- Centers reamer to create a round hole in all soil conditions
- Can be customized to be used with a variety of reamers and soil types
- Holds drill rod, reamer, and product pipe on center to create a round hole and successful bore
- “Floating” water free body for weight reduction
- Front and rear water ports clear-cutters and wash away cuttings
- Hardfacing on high wear areas extend reamer life
- Conical carbide cutters minimize wear on the blade edges and face
-

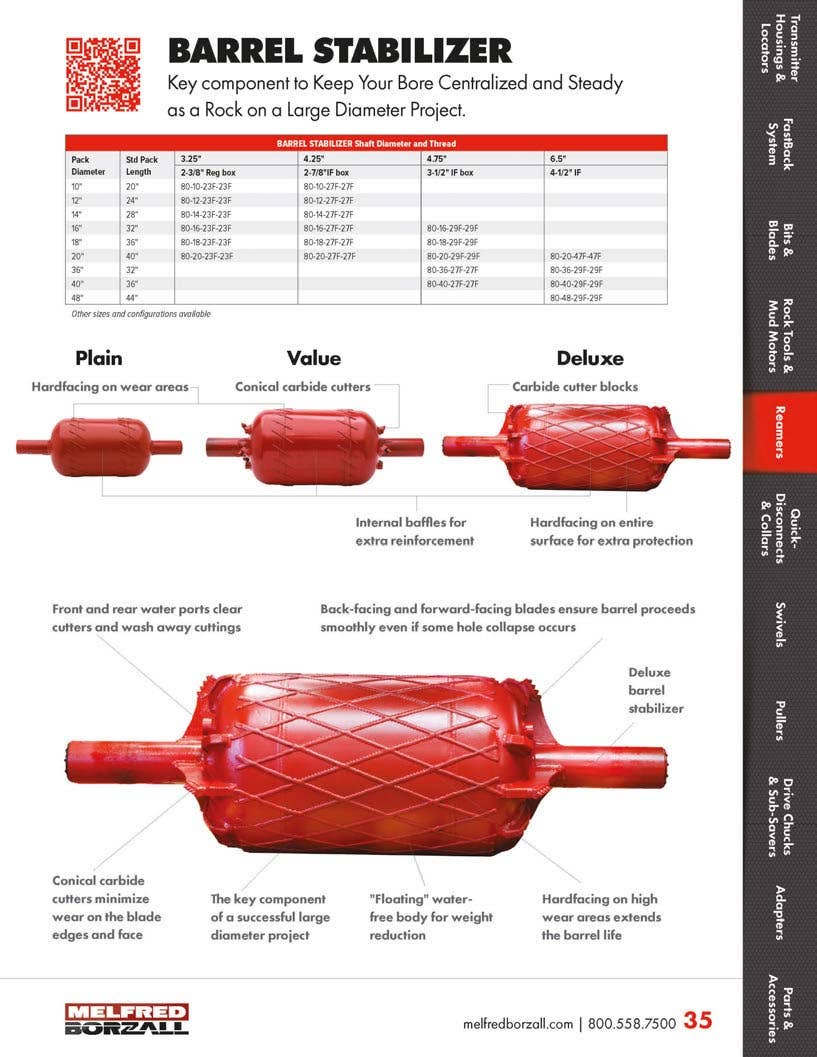

Catalog Pages | Barrel Stabilizers (135.20 KB)
- Press Release: Now Offering 3 Different Barrel Stabilizers
- Article: How to Avoid Sticky Situations When Backreaming in Clay
- Article: How to Determine Which Thread You Have
- Article: How to Measure & Choose the Right Reamer for Your Job
- Article: What Causes a Road to Hump (& How to Avoid It)
- Article: Is Your Fluted Reamer Slowing You Down?
- Article: How to Make a BIG Hole the Right Way
- Article: Choosing the Right Tool: Backreamers
- Article: Choosing the Right Tool: Swivels
FREQUENTLY ASKED QUESTIONS
Short Answer: A barrel stabilizer is not always required, but it is helpful on longer bores, larger diameter holes, or in unstable ground conditions.
Correct use: A reamer can be run without a barrel stabilizer on shorter bores where ground conditions are stable and hole integrity can be maintained. As bore length or diameter increases, adding a barrel stabilizer helps keep the reamer centered and the hole round without collapsing.
Technical details: A barrel stabilizer supports the reamer body during rotation and pullback, reducing the chance of wandering, over-enlargement, or uneven cutting. This becomes more important in softer or reactive soils where the bore is more likely to deform.
Incorrect use includes: Running larger-diameter or longer bores in unstable ground without stabilization can be risky for hole collapse or irregularity, uneven reaming, and increased pullback loads. Always consult manufacturer recommendations for additives and operation.
Short Answer: An HDD barrel stabilizer helps keep the bore round and supported during reaming.
Correct use: A barrel stabilizer is run behind a reamer to pack the hole to a consistent diameter, smooth the bore path, and reduce irregularities. This helps prevent collapse and creates a cleaner path for product installation.
Technical details: By stabilizing the bore wall and knocking down ledges or flats, the barrel stabilizer reduces drag and pullback loads on the product. It is especially useful in softer or unstable ground conditions.
Incorrect use includes: Assuming a barrel stabilizer replaces proper reamer sizing or using it in place of cutting tools. Incorrect use can introduce greater risk of poor bore quality or unnecessary pullback resistance.
Short Answer: A barrel stabilizer should be added when bore stability and hole quality become a concern.
Correct use: Barrel stabilizers are commonly run on larger diameters, longer bores, or in unstable ground where the hole is prone to sloughing or collapse. They are typically installed behind the cutting reamer on the final pass to smooth and support the bore before product pullback.
Technical details: By packing the hole to a consistent diameter, the stabilizer helps control bore shape and reduces drag during pullback.
Incorrect use includes: Running a barrel stabilizer in place of a cutting reamer or using it too early in the reaming sequence.
Short Answer: A barrel stabilizer should be sized to the final hole diameter, which must remain larger than the product OD.
Correct use: Match the stabilizer's pack diameter to the finished bore size you want to maintain through the hole. This ensures consistent annular space and a smooth path for the product during pullback.
Technical details: Proper sizing helps maintain bore integrity from entry to exit and reduces the risk of drag or hang-ups caused by ledges or uneven walls.
Incorrect use includes: Selecting a stabilizer smaller than the desired hole size or equal to the product OD. Incorrect use can introduce greater risk of increased pullback loads or installation difficulty.
