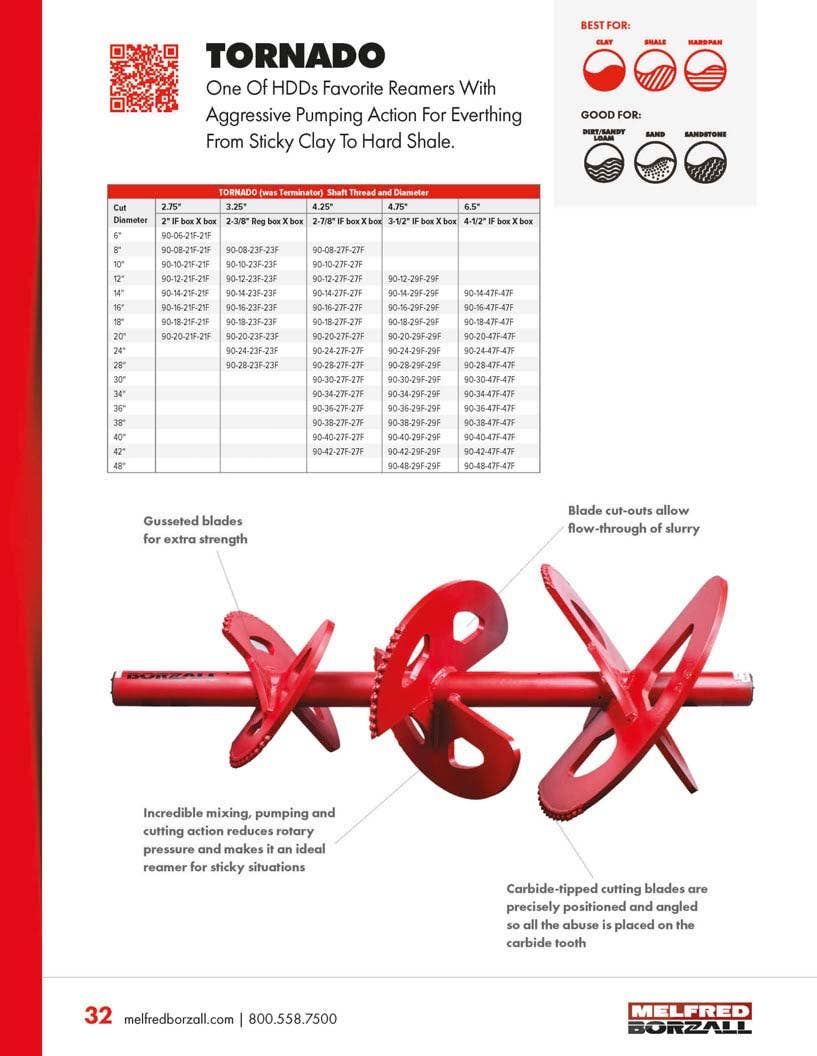

Tornado Reamers

Short Answer: Tornado Reamers are best suited for clay, hardpan, shale, and other reactive or mixed ground conditions.

Correct use: Tornado Reamers perform well in clay, hardpan, shale, and mixed soils where aggressive cutting and soil pumping and mixing help keep the bore open and manageable. They can also be used effectively in dirt and sand when additional mixing action is beneficial.

Technical details: The Tornado's cutting profile and high mixing action are designed to break up sticky or reactive soils that tend to ball up or close in on the bore. This helps stabilize the hole and manage cuttings without unnecessarily increasing pullback loads on the rig.

Incorrect use includes: Relying on a Tornado Reamer for solid rock drilling or conditions requiring specialized rock tooling. Incorrect use can introduce greater risk of inefficient cutting, excessive wear, and even safety risks.

Short Answer: A barrel stabilizer is not always required, but it is helpful on longer bores, larger diameter holes, or in unstable ground conditions.

Correct use: A reamer can be run without a barrel stabilizer on shorter bores where ground conditions are stable and hole integrity can be maintained. As bore length or diameter increases, adding a barrel stabilizer helps keep the reamer centered and the hole round without collapsing.

Technical details: A barrel stabilizer supports the reamer body during rotation and pullback, reducing the chance of wandering, over-enlargement, or uneven cutting. This becomes more important in softer or reactive soils where the bore is more likely to deform.

Incorrect use includes: Running larger-diameter or longer bores in unstable ground without stabilization can be risky for hole collapse or irregularity, uneven reaming, and increased pullback loads. Always consult manufacturer recommendations for additives and operation.

Short Answer: Pre-reaming is not always required, but stepping up in stages can be beneficial when bore length, final diameter, or ground instability increases.

Correct use: A single-pass ream can be appropriate on shorter bores with manageable diameter increases and stable ground. When moving to larger final diameters, running longer distances, or working in ground that is prone to swelling or collapse, staged reaming helps control the bore and manage the cut.

Technical details: Stepping up in stages reduces stress on the bore, improves cuttings transport, and can reduce spikes in torque and pullback load by avoiding a large diameter jump in one pass. This approach also helps maintain a rounder, more consistent hole in variable or reactive formations.

Incorrect use includes: Attempting a large diameter increase in a single pass on long bores or in unstable ground. This can introduce greater risk of poor hole quality, excessive pullback loads, stuck tooling, and bore collapse.

Short Answer: Use a Turbo Reamer in sand and unstable soils, and a Tornado Reamer in clay, hardpan, and more consolidated ground.

Correct use: Turbo Reamers are best when the hole wants to slough or flow, such as in sand, loose dirt, or mixed unstable soils, where strong mixing and pumping action is needed to keep the bore open. Tornado Reamers are better suited for firmer, more cohesive formations like clay, hardpan, and shale where aggressive cutting and soil breakup are required.

Technical details: Turbo Reamers use curved packer blades and pumping features to move and suspend loose material in drilling fluid, while Tornado Reamers rely on aggressive cutting structures and mixing action to fracture and condition tougher soils.

Incorrect use includes: Running a Tornado in flowing sand or using a Turbo in solid or highly compacted ground. Incorrect use can introduce greater risk of poor hole stability, inefficient cutting, or excessive wear.
